BRAIDING MACHINERY KOKUBUN LTD.
Horizontal Braider
For Yarn：Model 203 group
For Wire：Model 204 & 301 group
Model 203-D’32 Carrier Braider
Model 203-DD’32×32 Carrier 2Decks Braider
| Single Deck | |||||
|---|---|---|---|---|---|
| Model No. | Number of Carrier |
Machine Size(m/m) | Net Weight | ||
| Length | Width | Height | |||
| 203-C’ | 24 | 2,635 | 1,125 | 1,410 | 2,300kg |
| 203-D' | 32 | 3,000 | 1,225 | 1,475 | 2,750kg |
36,48 & 64 Carrier Braider also available on Request.
| 4M-44T HORN GEAR BRAIDER | |||||
|---|---|---|---|---|---|
| Model No. | Number of Carrier |
Machine Size(m/m) | Net Weight | ||
| Length | Width | Height | |||
| 203-E" | 36 | 4,000 |
1,600 | 1,600 | 3,200kg |
| 203-F" | 48 | 4,000 | 1,800 | 1,800 | 3,700kg |
| 203-G" | 64 | 4,400 | 2,400 | 2,400 | 4,500kg |
24 & 32 Carrier Braider also available on Request.
2 Decks |
|||||
|---|---|---|---|---|---|
| Model No. | Number of Carrier |
Machine Size(m/m) | Net Weight | ||
| Length | Width | Height | |||
| 203-DC’ | 24×24 | 4,500 | 1,125 | 1,410 | 3,000kg |
| 203-B'C' | 20×24 | 4,500 | 1,125 | 1,410 | 2,850kg |
| 203-DD’ | 32×32 | 4,650 | 1,400 | 1,540 | 3,300kg |
| 203-DE' | 36×36 | 4,800 | 1,400 | 1,540 | 4,000kg |
| 203-DG’ | 64×64 | 6,500 | 2,300 | 2,300 | 7,000kg |
48 & 48 Carrier Braider also available on Request.

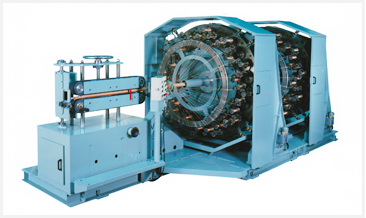

Model 301-DF Horizontal Wire Braide

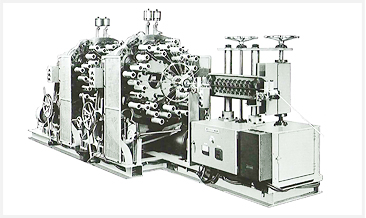

Model 204-F horizon wire Braider
| Single Deck | |||||
|---|---|---|---|---|---|
| Model No. | Number of Carrier |
Machine Size(m/m) | Net Weight | ||
| Length | Width | Height | |||
| 204-A | 16 | 4,500 | 1,500 | 1,200 | 3,100kg |
| 204-C | 24 | 4,625 |
1,640 | 1,380 | 3,900kg |
| 204-D | 32 | 4,625 | 1,760 | 1,650 | 4,200kg |
| 204-E | 36 | 4,625 | 1,830 | 1,720 | 4,400kg |
| 204-F | 48 |
5,270 | 2,260 | 2,300 | 5,750kg |
| 2 Decks | |||||
|---|---|---|---|---|---|
| Model No. | Number of Carrier |
Machine Size(m/m) | Net Weight | ||
| Length | Width | Height | |||
301-DA |
16×16 | 6,000 |
1,500 | 1,200 | 4,700kg |
| 301-DC | 24×24 | 6,550 | 1,640 | 1,380 | 6,300kg |
| 301-DD | 32×32 | 6,550 | 1,760 |
1,650 | 6,900kg |
| 301-DE | 36×36 | 6,550 | 1,830 | 1,720 | 7,300kg |
| 301-DF | 48×48 |
7,900 | 2,260 | 2,300 | 10,000kg |
3 Decks |
|||||
|---|---|---|---|---|---|
| Model No. | Number of Carrier |
Machine Size(m/m) | Net Weight | ||
| Length | Width | Height | |||
| 301-TA | 16×16×16 | 8,500 | 1,500 | 1,200 | 6,300kg |
| 301-TB | 20×20×20 | 8,500 | 1,440 | 1,250 | 7,600kg |
| 301-TC | 24×24×24 |
8,500 | 1,640 | 1,380 | 8,700kg |
| 301-TD | 32×32×32 | 8,500 | 1,760 | 1,650 | 9,600kg |
| 301-TE | 36×36×36 | 8,500 | 1,830 | 1,720 | 10,200kg |
| 301-TF | 48×48×48 | 10,500 | 2,260 | 2,300 | 14,300kg |
